900CY.TP
应用范围机械制造、机床设备、自动化生产线移动单元的应用。中度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统。中度负载下移动使用场合，符合EMC要求的铜丝屏蔽，防止电磁干扰。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：高强度PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.绞合：芯线绞合成对5.屏蔽：镀锡铜丝编制屏蔽6.护套：特殊定制高强度弹性体混合物（NBR）。7.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V测试电压：1500V、2000V、2500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤5m/s4.使用寿命：≥1200万次5.使用温度：固定安装：-30℃~+105℃ 移动安装：-10℃~+90℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)900CY.TP2×2×0.145.944900CY.TP3×2×0.146.454900CY.TP4×2×0.146.866900CY.TP5×2×0.147.575900CY.TP6×2×0.148.188900CY.TP7×2×0.148.892900CY.TP2×2×0.26.451900CY.TP3×2×0.26.765900CY.TP4×2×0.27.480900CY.TP5×2×0.2892900CY.TP6×2×0.28.7108900CY.TP7×2×0.29.3113900CY.TP2×2×0.256.666900CY.TP3×2×0.257.282900CY.TP4×2×0.257.7104900CY.TP5×2×0.258.5120900CY.TP6×2×0.2510.4141900CY.TP7×2×0.2510.4148900CY.TP2×2×0.37.870900CY.TP3×2×0.38.388900CY.TP4×2×0.39111900CY.TP5×2×0.39.9129900CY.TP6×2×0.310.8152900CY.TP7×2×0.310.8160900CY.TP2×2×0.34877900CY.TP3×2×0.348.498900CY.TP4×2×0.349.3120900CY.TP5×2×0.3410.1140900CY.TP6×2×0.3411.1165900CY.TP7×2×0.3411.1175900CY.TP2×2×0.48.578900CY.TP3×2×0.49.1100
900CY.P
应用范围机械制造、机床设备、自动化生产线移动单元的应用。高度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统。高度负载下移动使用场合，符合EMC要求的铜丝屏蔽，防止电磁干扰。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.屏蔽：镀锡铜丝编制屏蔽5.护套：特殊定制高强度弹性体混合物。6.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V、0.6/1KV测试电压：1500V、2000V、2500V、3500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤5m/s4.使用寿命：≥1200万次5.使用温度：固定安装：-30℃~+105℃ 移动安装：-10℃~+90℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)900CY.P2×0.144.326900CY.P3×0.144.528900CY.P4×0.14535900CY.P5×0.145.339900CY.P6×0.145.644900CY.P7×0.146.253900CY.P8×0.146.560900CY.P9×0.146.965900CY.P10×0.147.375900CY.P12×0.14885900CY.P14×0.148.5100900CY.P16×0.148.9107900CY.P2×0.24.528900CY.P3×0.24.934900CY.P4×0.25.238900CY.P5×0.25.543900CY.P6×0.26.653900CY.P7×0.27.160900CY.P8×0.27.868900CY.P9×0.28.579900CY.P10×0.28.988900CY.P12×0.29.9101900CY.P14×0.210.9119900CY.P16×0.211120900CY.P2×0.255.232900CY.P3×0.255.536900CY.P4×0.255.942900CY.P5×0.256.450900CY.P6×0.256.958900CY.P7×0.257.466900CY.P8×0.258.178900CY.P9×0.258.887900CY.P10×0.258.298900CY.P12×0.259112900CY.P14×0.259.7140900CY.P16×0.2510143900CY.P2×0.3534900CY.P3×0.35.238900CY.P4×0.35.545900CY.P5×0.36.154900CY.P6×0.36.562900CY.P7×0.36.971900CY.P8×0.37.584900CY.P9×0.3894900CY.P10×0.38.6109900CY.P12×0.39.3121900CY.P14×0.310150900CY.P16×0.310.4156900CY.P2×0.34535900CY.P3×0.345.239900CY.P4×0.345.546900CY.P5×0.346.156900CY.P6×0.346.564900CY.P7×0.346.974900CY.P8×0.347.587900CY.P9×0.34897900CY.P10×0.348.6113900CY.P12×0.349.3125900CY.P14×0.3410155900CY.P16×0.3410.4162900CY.P2×0.45.642900CY.P3×0.45.848900CY.P4×0.46.459900CY.P5×0.46.968900CY.P6×0.47.480900CY.P7×0.48.195900CY.P8×0.48.6107900CY.P9×0.49.2120900CY.P10×0.410139900CY.P12×0.411164900CY.P14×0.411.9200900CY.P16×0.412.3205900CY.P2×0.56.353900CY.P3×0.56.662900CY.P4×0.57.175900CY.P5×0.57.988900CY.P6×0.58.4102900CY.P7×0.59.3123900CY.P8×0.59.9138900CY.P9×0.510.5156900CY.P10×0.511.7185900CY.P12×0.513206900CY.P14×0.514248900CY.P16×0.514.3264900CY.P2×0.756.763900CY.P3×0.757.174900CY.P4×0.757.794900CY.P5×0.758.4106900CY.P6×0.759.1129900CY.P7×0.759.9149900CY.P8×0.7510.9179900CY.P9×0.7512202900CY.P10×0.7512.7232900CY.P12×0.7514.1267900CY.P14×0.7515.3316900CY.P16×0.7515.7333900CY.P2×1.07.276900CY.P3×1.07.696900CY.P4×1.08.3116900CY.P5×1.09136900CY.P6×1.09.8159900CY.P7×1.010.6193900CY.P8×1.011.8220900CY.P9×1.013255900CY.P10×1.013.6293900CY.P2×1.58.3102900CY.P3×1.58.8129900CY.P4×1.59.7158900CY.P5×1.510.6189900CY.P6×1.511.7228900CY.P7×1.512.6264900CY.P8×1.513.9309900CY.P9×1.515.3358900CY.P10×1.516.3410900CY.P2×2.510.2167900CY.P3×2.510.8204900CY.P4×2.512251900CY.P5×2.513.2299900CY.P6×2.514.4362900CY.P7×2.515.7430900CY.P8×2.517.4512900CY.P9×2.519.3591900CY.P10×2.520.4678900CY.P2×4.012.1218900CY.P3×4.012.9266900CY.P4×4.014.2342900CY.P5×4.015.7403900CY.P6×4.017.2486
900CY
应用范围机械制造、机床设备、自动化生产线移动单元的应用，机械自动化安装工程，测量和控制技术系统。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。技术参数：1.额定电压：300/300V、300/500V、450/750V测试电压：1500V、2000V、2500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤3m/s4.使用寿命：≥300万次5.使用温度：固定安装：-30℃~+105℃ 移动安装：-10℃~+90℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)900CY2×0.143.717900CY3×0.143.920900CY4×0.144.123900CY5×0.144.730900CY6×0.14534900CY7×0.145.440900CY8×0.145.745900CY9×0.146.352900CY10×0.146.762900CY12×0.147.669900CY14×0.148.280900CY16×0.148.383900CY2×0.23.920900CY3×0.24.123900CY4×0.24.427900CY5×0.24.934900CY6×0.2640900CY7×0.26.546900CY8×0.27.155900CY9×0.27.963900CY10×0.28.371900CY12×0.29.580900CY14×0.210.396900CY16×0.210.4101900CY2×0.254.522900CY3×0.254.825900CY4×0.255.332900CY5×0.255.738900CY6×0.256.345900CY7×0.256.854900CY8×0.257.460900CY9×0.258.273900CY10×0.257.684900CY12×0.258.694900CY14×0.259108900CY16×0.259.3114900CY2×0.34.223900CY3×0.34.630900CY4×0.34.935900CY5×0.35.342900CY6×0.35.852900CY7×0.36.360900CY8×0.36.768900CY9×0.37.380900CY10×0.37.891900CY12×0.38.999900CY14×0.39.6120900CY16×0.39.9130900CY2×0.344.223900CY3×0.344.631900CY4×0.344.936900CY5×0.345.344900CY6×0.345.854900CY7×0.346.363900CY8×0.346.771900CY9×0.347.383900CY10×0.347.895900CY12×0.348.9103900CY14×0.349.6125900CY16×0.349.9136900CY2×0.4533900CY3×0.45.339900CY4×0.45.746900CY5×0.46.155900CY6×0.46.868900CY7×0.47.478900CY8×0.48.193900CY9×0.48.6105900CY10×0.49.2119900CY12×0.410.5133900CY14×0.411.3160900CY16×0.411.7170900CY2×0.55.742900CY3×0.55.949900CY4×0.56.661900CY5×0.57.174900CY6×0.57.990900CY7×0.58.5104900CY8×0.59.1118900CY9×0.510138900CY10×0.510.9158900CY12×0.512.5180900CY14×0.514212900CY16×0.513.8223900CY2×0.75653900CY3×0.756.463900CY4×0.757.177900CY5×0.757.895900CY6×0.758.5112900CY7×0.759.2134900CY8×0.7510.2153900CY9×0.7511.3180900CY10×0.7512205900CY12×0.7513.7232900CY14×0.7515.3276900CY16×0.7515.1293900CY2×1.06.667900CY3×1.06.979900CY4×1.07.6100900CY5×1.08.4120900CY6×1.09.2146900CY7×1.010169900CY8×1.011.1198900CY9×1.012.3233900CY10×1.013266900CY2×1.57.693900CY3×1.58.2115900CY4×1.59145900CY5×1.510177900CY6×1.510.9208900CY7×1.511.9247900CY8×1.513.2288900CY9×1.514.7326900CY10×1.515.6375900CY2×2.59.6150900CY3×2.510.2192900CY4×2.511.3241900CY5×2.512.5293900CY6×2.513.7351900CY7×2.515398900CY8×2.516.7473900CY9×2.518.5545900CY10×2.519.6624900CY2×4.011.4202900CY3×4.012.2262900CY4×4.013.5329900CY5×4.015401900CY6×4.016.5480
820CY.TP
应用范围机械制造、机床设备、自动化生产线移动单元的应用。可以接触油污环境使用，机械自动化安装工程，适合户外使用。耐腐蚀、酸碱、恶劣环境使用，高速高负载下移动使用场合。符合EMC要求的铜丝屏蔽，防止电磁干扰。 电缆结构1. 导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2. 绝缘：特种PVC混合物。3. 芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4. 绞合：芯线绞合成对5. 屏蔽：无氧铜丝编制屏蔽6. 护套：PUR7. 常规颜色：黑色、灰色、橙色。 技术参数：1. 额定电压：300/300V、300/500V、450/750V测试电压：1500V、2000V、2500V2. 最小弯曲半径：固定安装：6xD移动安装：8xD3. 移动速度：≤5m/s4. 使用寿命：≥800万次5. 使用温度：固定安装：-50℃~+90℃移动安装：-40℃~+80℃ 型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)820CY.TP2×2×0.146.144820CY.TP3×2×0.146.654820CY.TP4×2×0.14766820CY.TP5×2×0.147.775820CY.TP6×2×0.148.388820CY.TP7×2×0.14992820CY.TP2×2×0.26.651820CY.TP3×2×0.26.965820CY.TP4×2×0.27.880820CY.TP5×2×0.28.292820CY.TP6×2×0.28.9108820CY.TP7×2×0.29.5113820CY.TP2×2×0.256.866820CY.TP3×2×0.257.482820CY.TP4×2×0.257.9104820CY.TP5×2×0.258.7120820CY.TP6×2×0.258.8141820CY.TP7×2×0.258.8148820CY.TP2×2×0.37.070820CY.TP3×2×0.37.388820CY.TP4×2×0.38.1111820CY.TP5×2×0.3
820CY.P
应用范围机械制造、机床设备、自动化生产线移动单元的应用。可以接触油污环境使用，机械自动化安装工程，适合户外使用。耐腐蚀、酸碱、恶劣环境使用，高速高负载下移动使用场合。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.屏蔽：无氧铜丝编制屏蔽5.护套：PUR6.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V、0.6/1KV测试电压：1500V、2000V、2500V、3500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤5m/s4.使用寿命：≥800万次5.使用温度：固定安装：-50℃~+90℃ 移动安装：-40℃~+80℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)820CY.P2×0.144.526820CY.P3×0.144.728820CY.P4×0.145.235820CY.P5×0.145.539820CY.P6×0.145.844820CY.P7×0.146.453820CY.P8×0.146.760820CY.P9×0.147.165820CY.P10×0.147.575820CY.P12×0.148.285820CY.P14×0.148.7100820CY.P16×0.149.1107820CY.P2×0.24.728820CY.P3×0.25.134820CY.P4×0.25.438820CY.P5×0.25.743820CY.P6×0.26.153820CY.P7×0.26.760820CY.P8×0.27.168820CY.P9×0.27.979820CY.P10×0.28.288820CY.P12×0.28.8101820CY.P14×0.29.7119820CY.P16×0.29.9120820CY.P2×0.254.732820CY.P3×0.255.136820CY.P4×0.255.442820CY.P5×0.255.750820CY.P6×0.256.158820CY.P7×0.256.766820CY.P8×0.257.178820CY.P9×0.257.987820CY.P10×0.258.498820CY.P12×0.259.2112820CY.P14×0.259.9140820CY.P16×0.2510.2143820CY.P2×0.35.234820CY.P3×0.35.438820CY.P4×0.35.745820CY.P5×0.36.354820CY.P6×0.36.762820CY.P7×0.37.171820CY.P8×0.37.784820CY.P9×0.38.294820CY.P10×0.38.8109820CY.P12×0.39.5121820CY.P14×0.310.2150820CY.P16×0.310.6156820CY.P2×0.345.235820CY.P3×0.345.439820CY.P4×0.345.746820CY.P5×0.346.356820CY.P6×0.346.764820CY.P7×0.347.174820CY.P8×0.347.787820CY.P9×0.348.297820CY.P10×0.348.8113820CY.P12×0.349.5125820CY.P14×0.3410.2155820CY.P16×0.3410.6162820CY.P2×0.45.842820CY.P3×0.4648820CY.P4×0.46.659820CY.P5×0.47.168820CY.P6×0.47.680820CY.P7×0.48.395820CY.P8×0.48.8107820CY.P9×0.49.4120820CY.P10×0.410.2139820CY.P12×0.411.2164820CY.P14×0.412.1200820CY.P16×0.412.5205820CY.P2×0.56.553820CY.P3×0.56.862820CY.P4×0.57.375820CY.P5×0.58.188820CY.P6×0.58.6102820CY.P7×0.59.5123820CY.P8×0.510.1138820CY.P9×0.510.7156820CY.P10×0.511.7185820CY.P12×0.512.9206820CY.P14×0.514.2248820CY.P16×0.514.4264820CY.P2×0.756.963820CY.P3×0.757.274820CY.P4×0.75894820CY.P5×0.758.6106820CY.P6×0.759.4129820CY.P7×0.7510149820CY.P8×0.7511.1179820CY.P9×0.7512.2202820CY.P10×0.7512.8232820CY.P12×0.7514.1267820CY.P14×0.7515.5316820CY.P16×0.7515.8333820CY.P2×1.07.976820CY.P3×1.08.396820CY.P4×1.08.9116820CY.P5×1.09.9136820CY.P6×1.010.8159820CY.P7×1.011.6193820CY.P8×1.012.8220820CY.P9×1.014.1255820CY.P10×1.014.7293820CY.P2×1.58.5102820CY.P3×1.58.9129820CY.P4×1.59.9158820CY.P5×1.510.9189820CY.P6×1.511.7228820CY.P7×1.512.7264820CY.P8×1.514.1309820CY.P9×1.515.5358820CY.P10×1.516.3410820CY.P2×2.510.3167820CY.P3×2.511.1204820CY.P4×2.512.2251820CY.P5×2.513.2299820CY.P6×2.514.5362820CY.P7×2.515.8430820CY.P8×2.517.4512820CY.P9×2.519.4591820CY.P10×2.520.4678820CY.P2×4.011.9218820CY.P3×4.012.8266820CY.P4×4.014.1342820CY.P5×4.015.5403820CY.P6×4.017486
820CY
应用范围机械制造、机床设备、自动化生产线移动单元的应用。可以接触油污环境使用，机械自动化安装工程，适合户外使用。耐腐蚀、酸碱、恶劣环境使用，高速高负载下移动使用场合。 电缆结构1. 导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2. 绝缘：特种PVC混合物。3. 芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4. 护套：PUR5. 常规颜色：黑色、灰色、橙色。 技术参数：1. 额定电压：300/300V、300/500V、450/750V、0.6/1KV测试电压：1500V、2000V、2500V、3500V2. 最小弯曲半径：固定安装：6xD移动安装：8xD3. 移动速度：≤5m/s4. 使用寿命：≥800万次5. 使用温度：固定安装：-50℃~+90℃移动安装：-40℃~+80℃ 型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)820CY2×0.143.917820CY3×0.144.120820CY4×0.144.323820CY5×0.144.930820CY6×0.145.234820CY7×0.145.640820CY8×0.145.945820CY9×0.146.552820CY10×0.146.962820CY12×0.147.869820CY14×0.148.480820CY16×0.148.583820CY2×0.24.120820CY3×0.24.323820CY4×0.24.627820CY5×0.25.134820CY6×0.25.640820CY7×0.25.946820CY8×0.26.655820CY9×0.27.163820CY10×0.27.471820CY12×0.28.380820CY14×0.2996820CY16×0.29.3101820CY2×0.254.222820CY3×0.254.325820CY4×0.254.632820CY5×0.255.238820CY6×0.255.645820CY7×0.255.954820CY8×0.256.660820CY9×0.257.173820CY10×0.257.884820CY12×0.258.894820CY14×0.259.2108820CY16×0.259.5114820CY2×0.34.423820CY3×0.34.830820CY4×0.35.135820CY5×0.35.542820CY6×0.3652820CY7×0.36.560820CY8×0.36.968820CY9×0.37.580820CY10×0.3891820CY12×0.39.199820CY14×0.39.8120820CY16×0.310.1130820CY2×0.344.423820CY3×0.344.831820CY4×0.345.136820CY5×0.345.544820CY6×0.34654820CY7×0.346.563820CY8×0.346.971820CY9×0.347.583820CY10×0.34895820CY12×0.349.1103820CY14×0.349.8125820CY16×0.3410.1136820CY2×0.45.233820CY3×0.45.539820CY4×0.45.946820CY5×0.46.355820CY6×0.4768820CY7×0.47.678820CY8×0.48.393820CY9×0.48.8105820CY10×0.49.4119820CY12×0.410.7133820CY14×0.411.5160820CY16×0.411.9170820CY2×0.55.942820CY3×0.56.149820CY4×0.56.861820CY5×0.57.374820CY6×0.58.190820CY7×0.58.7104820CY8×0.59.3118820CY9×0.510.2138820CY10×0.511.1158820CY12×0.512.3180820CY14×0.513.6212820CY16×0.513.9223820CY2×0.756.253820CY3×0.756.763820CY4×0.757.277820CY5×0.75895820CY6×0.758.7112820CY7×0.759.5134820CY8×0.7510.3153820CY9×0.7511.5180820CY10×0.7512.2205820CY12×0.7513.3232820CY14×0.7514.7276820CY16×0.7515.2293820CY2×1.07.267820CY3×1.07.579820CY4×1.08.4100820CY5×1.09.3120820CY6×1.010.1146820CY7×1.011169820CY8×1.012.2198820CY9×1.013.3233820CY10×1.014.2266820CY2×1.5893820CY3×1.58.4115820CY4×1.59.3145820CY5×1.510.1177820CY6×1.511.2208820CY7×1.511.2247820CY8×1.513.3288820CY9×1.514.8326820CY10×1.515.7375820CY2×2.59.8150820CY3×2.510.3192820CY4×2.511.4241820CY5×2.512.7293820CY6×2.514351820CY7×2.515.2398820CY8×2.516.9473820CY9×2.518.7545820CY10×2.519.9624820CY2×4.011.4202820CY3×4.012.2262820CY4×4.013.3329820CY5×4.014.8401820CY6×4.016.3480

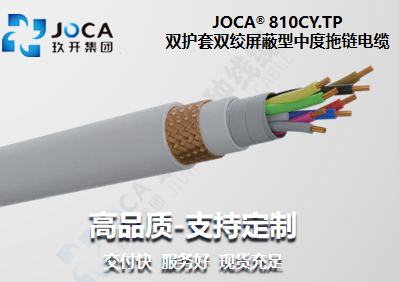

810CY.TP
应用范围机械制造、机床设备、自动化生产线移动单元的应用。轻度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统。低度负载下移动使用场合，符合EMC要求的铜丝屏蔽，防止电磁干扰。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.绞合：芯线绞合成对5.内护套：特殊定制高强度弹性体混合物。6.屏蔽：无氧铜丝编制屏蔽7.护套：特殊定制高强度弹性体混合物。8.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V测试电压：1500V、2000V、2500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤5m/s4.使用寿命：≥800万次5.使用温度：固定安装：-20℃~+80℃ 移动安装：-5℃~+70℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)810CY.TP2×2×0.147.261810CY.TP3×2×0.147.569810CY.TP4×2×0.148.180810CY.TP5×2×0.148.792810CY.TP6×2×0.149.4105810CY.TP7×2×0.1410.1118810CY.TP2×2×0.27.668810CY.TP3×2×0.2878810CY.TP4×2×0.28.691810CY.TP5×2×0.29.3105810CY.TP6×2×0.210121810CY.TP7×2×0.210.8137810CY.TP2×2×0.257.873810CY.TP3×2×0.258.283810CY.TP4×2×0.258.898810CY.TP5×2×0.259.6113810CY.TP6×2×0.2510.3130810CY.TP7×2×0.2510.3150810CY.TP2×2×0.38.477810CY.TP3×2×0.38.890810CY.TP4×2×0.39.5105810CY.TP5×2×0.310.1122810CY.TP6×2×0.311140810CY.TP7×2×0.311159810CY.TP2×2×0.348.878810CY.TP3×2×0.349.392810CY.TP4×2×0.349.9108810CY.TP5×2×0.3410.8126810CY.TP6×2×0.3411.5144810CY.TP7×2×0.3411.5164810CY.TP2×2×0.49.6100810CY.TP3×2×0.410116

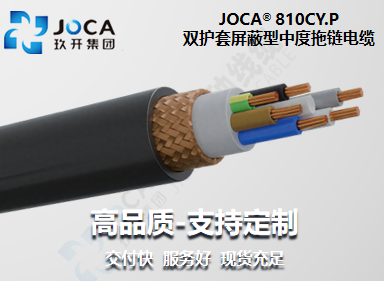

810CY.P
应用范围机械制造、机床设备、自动化生产线移动单元的应用。轻度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统。低度负载下移动使用场合，符合EMC要求的铜丝屏蔽，防止电磁干扰。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.内护套：特殊定制高强度弹性体混合物。5.屏蔽：无氧铜丝编制屏蔽6.护套：特殊定制高强度弹性体混合物。7.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V、0.6/1KV测试电压：1500V、2000V、2500V、3500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤5m/s4.使用寿命：≥800万次5.使用温度：固定安装：-20℃~+80℃ 移动安装：-5℃~+70℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)810CY.P2×0.145.338810CY.P3×0.145.542810CY.P4×0.145.847810CY.P5×0.146.254810CY.P6×0.146.660810CY.P7×0.14767810CY.P8×0.147.473810CY.P9×0.147.881810CY.P10×0.148.288810CY.P12×0.149.5108810CY.P14×0.1410.4123810CY.P16×0.1410.4128810CY.P2×0.25.542810CY.P3×0.25.846810CY.P4×0.26.153810CY.P5×0.26.561810CY.P6×0.27.668810CY.P7×0.28.175810CY.P8×0.28.683810CY.P9×0.29.392810CY.P10×0.29.6100810CY.P12×0.210.3124810CY.P14×0.211.2141810CY.P16×0.211.3147810CY.P2×0.256.245810CY.P3×0.256.550810CY.P4×0.256.857810CY.P5×0.257.265810CY.P6×0.257.673810CY.P7×0.258.182810CY.P8×0.258.690810CY.P9×0.259.399810CY.P10×0.259109810CY.P12×0.2510.5134810CY.P14×0.2511.4153810CY.P16×0.2511.5161810CY.P2×0.35.647810CY.P3×0.3652810CY.P4×0.36.461810CY.P5×0.36.969810CY.P6×0.37.478810CY.P7×0.37.887810CY.P8×0.38.396810CY.P9×0.38.8106810CY.P10×0.39.2117810CY.P12×0.310.8145810CY.P14×0.311.8165810CY.P16×0.311.8173810CY.P2×0.345.648810CY.P3×0.34653810CY.P4×0.346.462810CY.P5×0.346.971810CY.P6×0.347.480810CY.P7×0.347.890810CY.P8×0.348.399810CY.P9×0.348.8109810CY.P10×0.349.2121810CY.P12×0.3410.8149810CY.P14×0.3411.8170810CY.P16×0.3411.8179810CY.P2×0.46.559810CY.P3×0.46.867810CY.P4×0.47.377810CY.P5×0.47.889810CY.P6×0.48.5102810CY.P7×0.49113810CY.P8×0.49.6126810CY.P9×0.410.2140810CY.P10×0.410.8156810CY.P12×0.412.7191810CY.P14×0.413.9221810CY.P16×0.413.9233810CY.P2×0.57.273810CY.P3×0.57.683810CY.P4×0.58.297810CY.P5×0.58.8112810CY.P6×0.59.5127810CY.P7×0.510.2144810CY.P8×0.510.9160810CY.P9×0.511.6178810CY.P10×0.513.3199810CY.P12×0.514.5246810CY.P14×0.515.8284810CY.P16×0.516.1301810CY.P2×0.758.485810CY.P3×0.758.798810CY.P4×0.759.4115810CY.P5×0.7510134810CY.P6×0.7510.9154810CY.P7×0.7511.5173810CY.P8×0.7512.7195810CY.P9×0.7513.9217810CY.P10×0.7514.4242810CY.P12×0.7515.7301810CY.P14×0.7517.1347810CY.P16×0.7517.4369810CY.P2×1.09.4114810CY.P3×1.09.7131810CY.P4×1.010.4156810CY.P5×1.011.3182810CY.P6×1.012.5211810CY.P7×1.013.2239810CY.P8×1.014.4268810CY.P9×1.015.7301810CY.P10×1.016.6337810CY.P2×1.510134810CY.P3×1.510.4156810CY.P4×1.511.3186810CY.P5×1.512.5219810CY.P6×1.513.4254810CY.P7×1.514.4289810CY.P8×1.515.7325810CY.P9×1.517.2364810CY.P10×1.518.3410810CY.P2×2.511.8202810CY.P3×2.512.7238810CY.P4×2.513.8287810CY.P5×2.514.9341810CY.P6×2.516.2397810CY.P7×2.517.4454810CY.P8×2.519.5513810CY.P9×2.521.3578810CY.P10×2.522.4651810CY.P2×4.013.8264810CY.P3×4.014.4314810CY.P4×4.015.7383810CY.P5×4.017.2456810CY.P6×4.018.9535

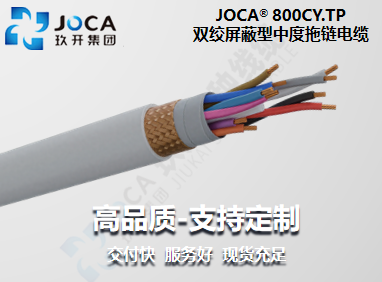

800CY.TP
应用范围机械制造、机床设备、自动化生产线移动单元的应用。轻度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统。低度负载下移动使用场合，符合EMC要求的铜丝屏蔽，防止电磁干扰。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.绞合：芯线绞合成对5.屏蔽：无氧铜丝编制屏蔽6.护套：特殊定制高强度弹性体混合物。7.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V测试电压：1500V、2000V、2500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤3m/s4.使用寿命：≥800万次5.使用温度：固定安装：-20℃~+80℃ 移动安装：-5℃~+70℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)800CY.TP2×2×0.145.944800CY.TP3×2×0.146.454800CY.TP4×2×0.146.866800CY.TP5×2×0.147.575800CY.TP6×2×0.148.188800CY.TP7×2×0.148.892800CY.TP2×2×0.26.451800CY.TP3×2×0.26.765800CY.TP4×2×0.27.480800CY.TP5×2×0.2890800CY.TP6×2×0.28.7108800CY.TP7×2×0.29.3113800CY.TP2×2×0.256.666800CY.TP3×2×0.257.282800CY.TP4×2×0.257.7104800CY.TP5×2×0.258.5120800CY.TP6×2×0.259.1141800CY.TP7×2×0.259.1148800CY.TP2×2×0.36.970800CY.TP3×2×0.37.388800CY.TP4×2×0.38111800CY.TP5×2×0.38.7129800CY.TP6×2×0.39.5152800CY.TP7×2×0.39.5160800CY.TP2×2×0.347.377800CY.TP3×2×0.347.598800CY.TP4×2×0.348.3120800CY.TP5×2×0.349140800CY.TP6×2×0.349.9165800CY.TP7×2×0.349.9175800CY.TP2×2×0.48.178800CY.TP3×2×0.48.6100

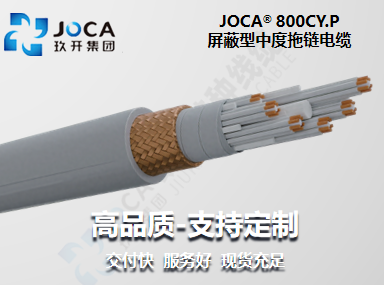

800CY.P
应用范围机械制造、机床设备、自动化生产线移动单元的应用。轻度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统。低度负载下移动使用场合，符合EMC要求的铜丝屏蔽，防止电磁干扰。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.屏蔽：无氧铜丝编制屏蔽5.护套：特殊定制高强度弹性体混合物。6.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V、0.6/1KV测试电压：1500V、2000V、2500V、3500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤3m/s4.使用寿命：≥800万次5.使用温度：固定安装：-20℃~+80℃ 移动安装：-5℃~+70℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)800CY.P2×0.144.326800CY.P3×0.144.528800CY.P4×0.14535800CY.P5×0.145.339800CY.P6×0.145.644800CY.P7×0.146.253800CY.P8×0.146.560800CY.P9×0.146.965800CY.P10×0.147.375800CY.P12×0.14885800CY.P14×0.148.5100800CY.P16×0.148.9107800CY.P2×0.24.528800CY.P3×0.24.934800CY.P4×0.25.238800CY.P5×0.25.543800CY.P6×0.25.953800CY.P7×0.26.360800CY.P8×0.26.868800CY.P9×0.27.479800CY.P10×0.27.888800CY.P12×0.28.6101800CY.P14×0.29.6119800CY.P16×0.29.5120800CY.P2×0.254.732800CY.P3×0.254.936800CY.P4×0.255.342800CY.P5×0.255.750800CY.P6×0.256.158800CY.P7×0.256.566800CY.P8×0.257.178800CY.P9×0.257.887800CY.P10×0.258.298800CY.P12×0.259112800CY.P14×0.259.7140800CY.P16×0.2510143800CY.P2×0.3534800CY.P3×0.35.238800CY.P4×0.35.545800CY.P5×0.36.154800CY.P6×0.36.562800CY.P7×0.36.971800CY.P8×0.37.584800CY.P9×0.3894800CY.P10×0.38.6109800CY.P12×0.39.3121800CY.P14×0.310150800CY.P16×0.310.4156800CY.P2×0.34535800CY.P3×0.345.239800CY.P4×0.345.546800CY.P5×0.346.156800CY.P6×0.346.564800CY.P7×0.346.974800CY.P8×0.347.587800CY.P9×0.34897800CY.P10×0.348.6113800CY.P12×0.349.3125800CY.P14×0.3410155800CY.P16×0.3410.4162800CY.P2×0.45.642800CY.P3×0.45.848800CY.P4×0.46.459800CY.P5×0.46.968800CY.P6×0.47.480800CY.P7×0.48.195800CY.P8×0.48.6107800CY.P9×0.49.2120800CY.P10×0.410139800CY.P12×0.411164800CY.P14×0.411.9200800CY.P16×0.412.3205800CY.P2×0.56.353800CY.P3×0.56.662800CY.P4×0.57.175800CY.P5×0.57.988800CY.P6×0.58.4102800CY.P7×0.59.3123800CY.P8×0.59.9138800CY.P9×0.510.5156800CY.P10×0.511.5185800CY.P12×0.512.9206800CY.P14×0.514248800CY.P16×0.514.2264800CY.P2×0.756.763800CY.P3×0.757.174800CY.P4×0.757.794800CY.P5×0.758.4106800CY.P6×0.759.1129800CY.P7×0.759.8149800CY.P8×0.7510.8179800CY.P9×0.7511.9202800CY.P10×0.7512.5232800CY.P12×0.7514.1267800CY.P14×0.7515.3316800CY.P16×0.7515.5333800CY.P2×1.07.776800CY.P3×1.08.195800CY.P4×1.08.9116800CY.P5×1.09.7136800CY.P6×1.010.6159800CY.P7×1.011.5193800CY.P8×1.012.6220800CY.P9×1.014255800CY.P10×1.014.7293800CY.P2×1.58.4102800CY.P3×1.58.9129800CY.P4×1.59.7158800CY.P5×1.510.7189800CY.P6×1.511.7228800CY.P7×1.512.6264800CY.P8×1.514309800CY.P9×1.515.4358800CY.P10×1.516.3410800CY.P2×2.510.2167800CY.P3×2.510.8204800CY.P4×2.511.9251800CY.P5×2.513.1299800CY.P6×2.514.3362800CY.P7×2.515.6430800CY.P8×2.517.2512800CY.P9×2.519.2591800CY.P10×2.520.3678800CY.P2×4.011.8218800CY.P3×4.012.5266800CY.P4×4.013.8342800CY.P5×4.015.3403800CY.P6×4.016.8486

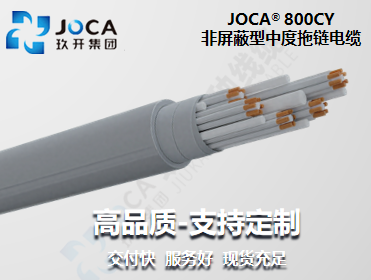

800CY
应用范围机械制造、机床设备、自动化生产线移动单元的应用。轻度油污环境使用，机械自动化安装工程，同服驱动，测量和控制技术系统，低度负载下移动使用场。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：特种PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。4.护套：特殊定制高强度弹性体混合物。5.常规颜色：黑色、灰色、橙色。技术参数：1.额定电压：300/300V、300/500V、450/750V、0.6/1KV测试电压：1500V、2000V、2500V、3500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤3m/s4.使用寿命：≥800万次5.使用温度：固定安装：-20℃~+80℃ 移动安装：-5℃~+70℃型号芯数 × 标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)800CY2×0.143.717800CY3×0.143.920800CY4×0.144.123800CY5×0.144.730800CY6×0.14534800CY7×0.145.440800CY8×0.145.745800CY9×0.146.352800CY10×0.146.762800CY12×0.147.669800CY14×0.148.280800CY16×0.148.383800CY2×0.23.920800CY3×0.24.123800CY4×0.24.427800CY5×0.24.934800CY6×0.25.240800CY7×0.25.746800CY8×0.26.255800CY9×0.26.863800CY10×0.27.271800CY12×0.28.280800CY14×0.2996800CY16×0.29101800CY2×0.254.122800CY3×0.254.325800CY4×0.254.632800CY5×0.255.138800CY6×0.255.545800CY7×0.255.954800CY8×0.256.560800CY9×0.257.173800CY10×0.257.684800CY12×0.258.694800CY14×0.259108800CY16×0.259.3114800CY2×0.34.223800CY3×0.34.630800CY4×0.34.935800CY5×0.35.342800CY6×0.35.852800CY7×0.36.360800CY8×0.36.768800CY9×0.37.380800CY10×0.37.891800CY12×0.38.999800CY14×0.39.6120800CY16×0.39.9130800CY2×0.344.223800CY3×0.344.631800CY4×0.344.936800CY5×0.345.344800CY6×0.345.854800CY7×0.346.363800CY8×0.346.771800CY9×0.347.383800CY10×0.347.895800CY12×0.348.9103800CY14×0.349.6125800CY16×0.349.9136800CY2×0.47.533800CY3×0.45.339800CY4×0.45.746800CY5×0.46.155800CY6×0.46.868800CY7×0.47.479800CY8×0.48.193800CY9×0.48.6105800CY10×0.49.2119800CY12×0.410.5133800CY14×0.411.3160800CY16×0.411.7170800CY2×0.55.742800CY3×0.55.949800CY4×0.56.661800CY5×0.57.174800CY6×0.57.990800CY7×0.58.5104800CY8×0.59.1118800CY9×0.510138800CY10×0.510.7158800CY12×0.512.4180800CY14×0.513.6212800CY16×0.513.6223800CY2×0.756.253800CY3×0.756.463800CY4×0.75777800CY5×0.757.795800CY6×0.758.5112800CY7×0.759.2134800CY8×0.7510.2153800CY9×0.7511.3180800CY10×0.7511.9205800CY12×0.7513.6232800CY14×0.7514.7276800CY16×0.7515.1293800CY2×1.0767800CY3×1.07.579800CY4×1.08.3100800CY5×1.09.1120800CY6×1.010146800CY7×1.010.7169800CY8×1.012198800CY9×1.013.3233800CY10×1.013.9266800CY2×1.57.893800CY3×1.58.3115800CY4×1.59.1145800CY5×1.510177800CY6×1.511208800CY7×1.512247800CY8×1.513.3288800CY9×1.514.8326800CY10×1.515.7375800CY2×2.59.8150800CY3×2.510.2192800CY4×2.511.2241800CY5×2.512.4293800CY6×2.513.7351800CY7×2.514.9398800CY8×2.516.6473800CY9×2.518.5545800CY10×2.519.6624800CY2×4.011202800CY3×4.011.9262800CY4×4.013.2329800CY5×4.014.6401800CY6×4.016.1480

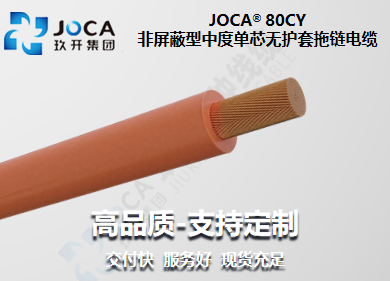

80CY
应用范围机械制造、机床设备、自动化生产线移动单元的应用。机械自动化安装工程，测量和控制技术系统。电缆结构1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。2.绝缘：PVC混合物。3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制，技术参数：1.额定电压：300/300V、300/500V、450/750V测试电压：1500V、2000V、2500V2.最小弯曲半径：固定安装：6xD移动安装：8xD3.移动速度：≤1.5m/s4.使用寿命：≥200万次5.使用温度：固定安装：-20℃~+80℃ 移动安装：-5℃~+70℃型号标称截面 \(mm²\)近似外径 mm近似重量 \(kg/km\)80CY0.141.22.480CY0.251.33.780CY0.31.75.380CY0.341.75.880CY0.41.86.480CY0.52.18.480CY0.752.311.180CY12.513.880CY1.252.918.580CY1.5321.380CY23.527.780CY2.53.633.780CY44.348.880CY65.167.680CY106.311480CY167.517180CY259.426180CY3510.736180CY501250580CY7013.869480CY951694180CY12017.91176
